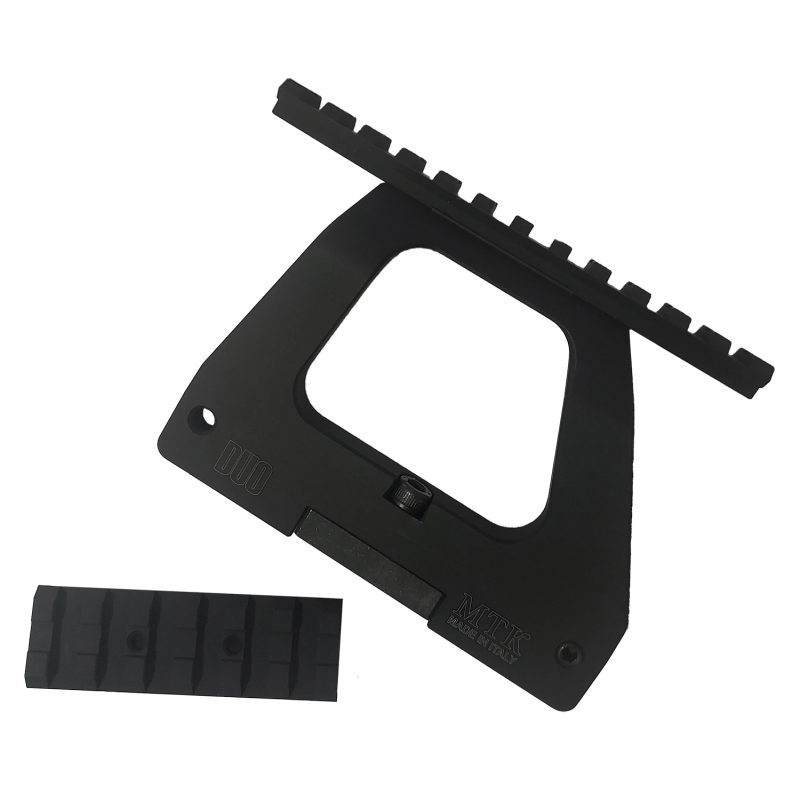

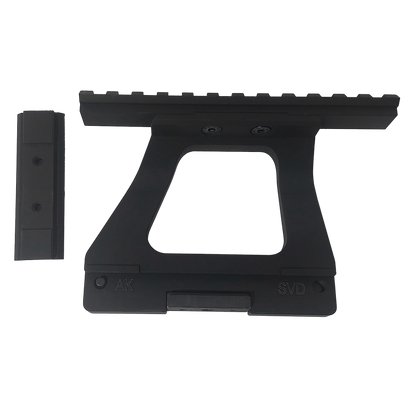

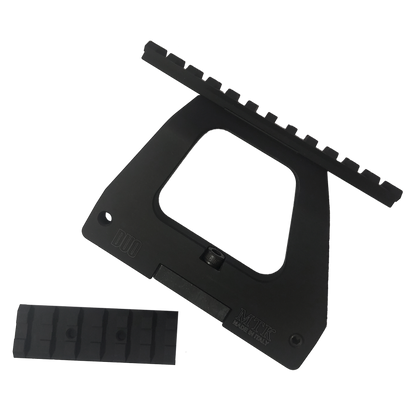

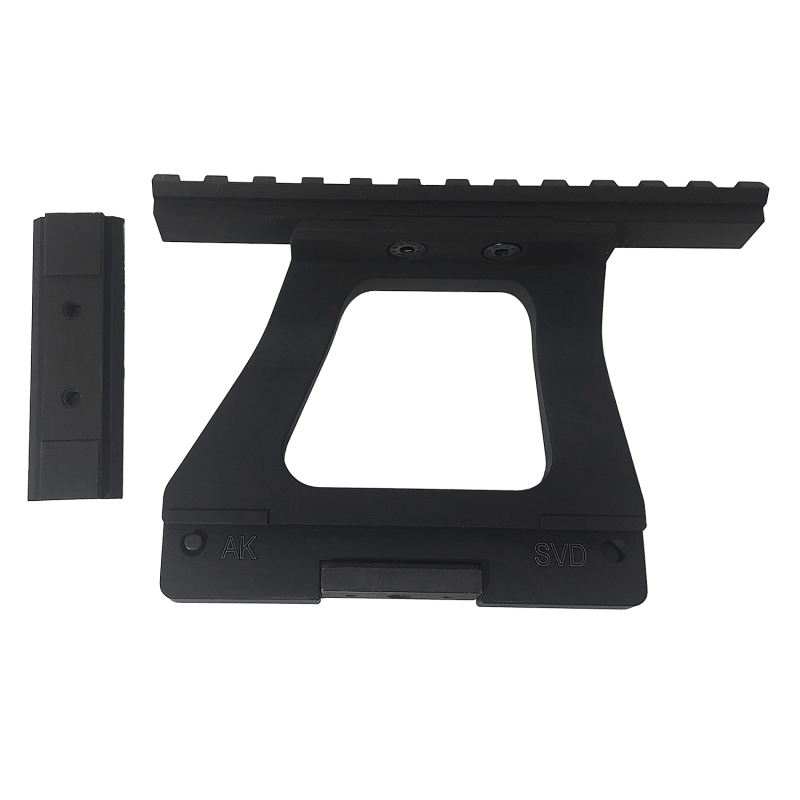

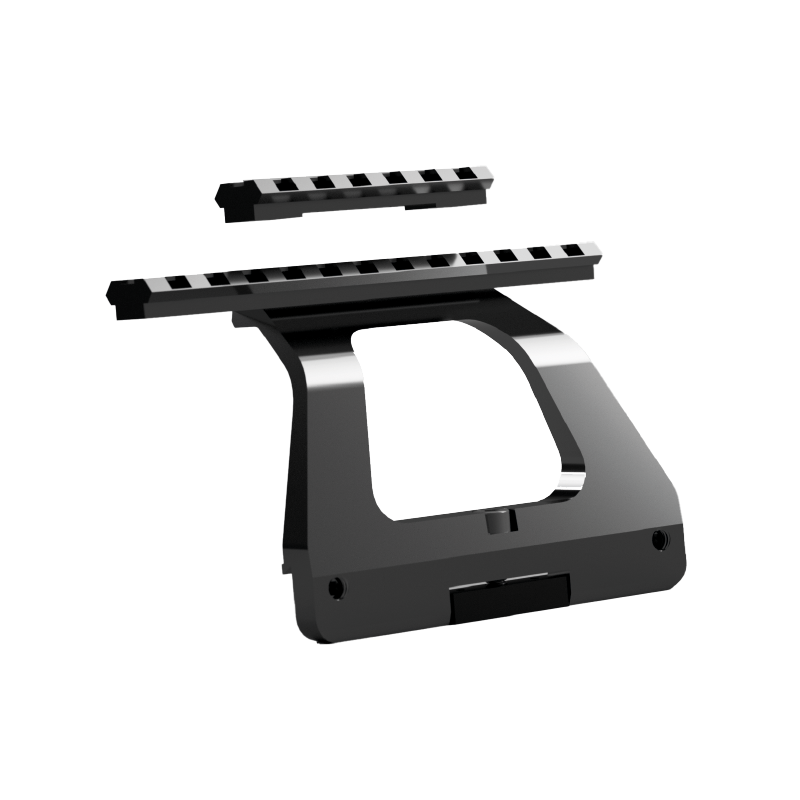

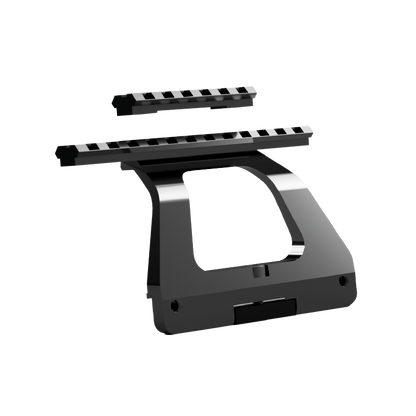

DUO Modular picatinny rail

Modular side mount for AK/SVD.

• Allows installation of a 12-slot or 6-slot Picatinny rail (both included).
• Designed to minimize the number of components.
• Mechanically guided component coupling.
• Coaxiality within 0.01mm / 0.039” (3/64).
• Designed for heavy/intensive use.
• As light as possible, made from aluminum alloy.
• Low axis height without hindering field stripping.
• The clamping screw engages steel only.
• Simple operation and extremely stable.
• Standard Russian military dimensions (Izhmash) / Standard RU mil-spec (Izhmash).

When mounted on SVD, the rail is offset by 4mm to the left of the centerline.
